Passive solar design is a system of designing buildings that utilize the sun's energy to achieve efficient heating and cooling. This technique has been used for thousands of years, with ancient civilizations in Peru and Greece designing buildings with sun-exposed walls and thick roofs to maintain comfortable temperatures. In modern times, passive solar design has evolved into a more sophisticated system that can be applied to buildings of all types and sizes.

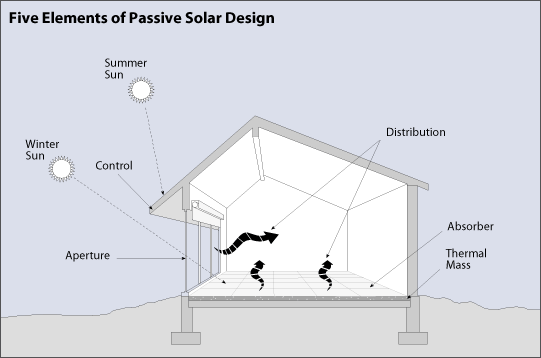

The principles of passive solar design are simple: Collect, store, and distribute the sun's energy through thoughtful placement and use of windows, walls, floors, and roofing materials. The main components that make passive solar design work are:
The orientation of a building is important in passive solar design. It should be built in such a way that it receives maximum exposure to sunlight during the winter, and minimum during the summer. Houses or buildings designed with a south-facing aspect will allow for maximum sunlight exposure, and minimum during the summer by use of proper shading.
The location and design of windows is important for effective passive solar design. Strategically placed windows allow optimum solar gain, and awnings or other shading devices can be applied during the hot months to minimize overheating. Proper glazing can also manage heat gain and loss. Double or even triple glazing is important to increase thermal efficiency.
Thermal mass refers to materials that can store and release heat effectively. Popular materials for thermal mass include stone, brick, and concrete. During winter months, sunlight is used to heat these materials, increasing the ambient temperature within the house or building. Likewise, thermal mass can help absorb excess heat during hot months and slowly release it over time.
Ventilation is also an essential component in passive solar design to maintain temperature balance. Natural ventilation can be implemented by way of strategically positioned windows or other ducting systems. Proper ventilation can help remove excess heat in summer, improve indoor air quality and help regulate temperature balance throughout the year.
Passive solar design offers many benefits to both the inhabitants of the building and the environment. Here are some of the benefits:
Passive solar design can reduce energy costs by up to 50-80% by harnessing the sun's energy to provide heating and cooling for the building. This can significantly reduce energy costs and help homeowners or business owners save money.
By using renewable energy, passive solar design can help reduce the carbon footprint of buildings significantly. This can help mitigate climate change, promote environmental sustainability and reduce the negative impact of buildings on the environment.
Passive solar design helps ensure thermal comfort within the building by creating a balanced temperature environment. This is achieved by managing solar gain and heat loss in the most efficient manner possible. Well thought out designs also create welcoming and natural indoor environments.
With the use of passive solar design, buildings become less reliant on artificial heating and cooling systems, reducing their carbon footprint and the burden on the utility company grid. It also makes for a more cost-efficient property in the long run.
According to the U.S. Department of Energy, passive solar design can save up to 50-80% on energy costs.
The cost of implementing passive solar design into a building varies depending on the structure, location, and design requirements. The additional cost is the price of proper windows, glazing materials and increased insulation to achieve greater efficiency.
A passive solar evaluator should be consulted to determine how to retrofit passive solar design into an existing building. This would include analyzing sun exposure patterns, building layout, and proposed material changes.
Most estimates put payback at anywhere from 5-20 years, depending on the location, building, and design factors involved. Higher insulation quality and shading materials will most often speed up payback.
Passive solar design can be applied in buildings of all types and sizes, including homes, offices, industrial buildings, schools or public buildings. Buildings with large windows and high ceilings would benefit greatly from passive solar design.
