Changing a light switch may seem like a simple task, but it is important to ensure that the job is done correctly and safely. One way to verify that the job has been done properly is by using a multimeter. In this article, we will discuss the steps involved in changing a light switch with the assistance of a multimeter.
Before we begin, let us discuss the tools that we will need:
1. Multimeter – A device used for measuring electrical properties such as voltage, current, and resistance.
2. Voltage detector – An electronic device that can detect the presence of voltage in wires.
3. Screwdriver – A tool used for removing and tightening screws.
4. Wire stripper – A tool used for stripping the insulation from wires.
5. Wire nuts – A type of connector used for joining wires.
1. Turn off the power – Locate the circuit breaker that controls the power to the light switch and turn it off. You can use a voltage detector to ensure that the wiring is not live.
2. Remove the old switch – Use a screwdriver to loosen the screws that hold the switch in place. Gently pull the switch out of the wall and reveal the wires behind it.
3. Label the wires – This step is important as you do not want to confuse the wires when connecting the new switch. Use a piece of tape to label each wire with its respective function, such as “hot,” “neutral,” and “ground.” You can use a multimeter to test the wires and verify their function.
4. Disconnect the wires – Using a screwdriver, loosen the screws that hold the wires in place and remove them from the switch. Be sure not to damage or cut the wires.
5. Install the new switch – Follow the manufacturer's instructions to install the new switch. Make sure that the wires are properly connected and tightened by using a screwdriver. You can use a multimeter to test the connections and ensure that they are secure.
6. Turn on the power – Once you have installed the new switch, turn the power back on and test the switch to ensure that it is working properly.

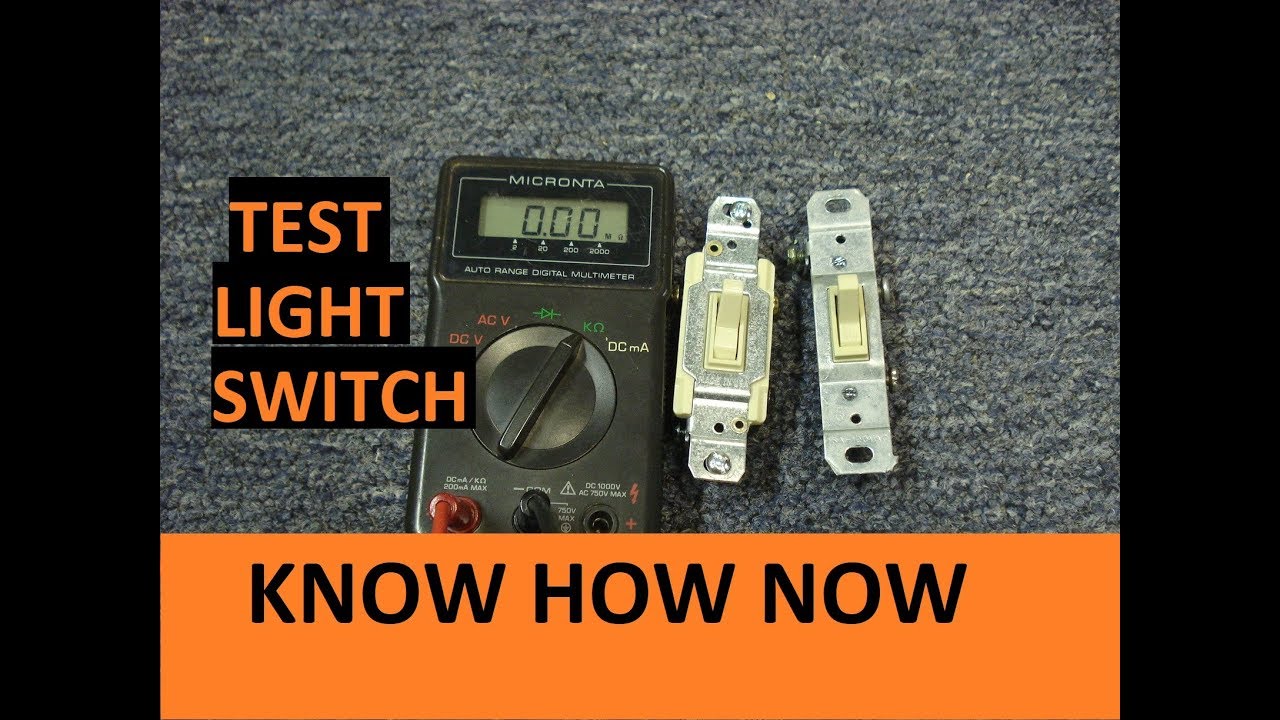

A multimeter is a versatile tool that can be used to test various electrical properties. Here is a brief guide on how to use a multimeter to test the wiring of a light switch:
1. Set the multimeter to the appropriate function – In this case, we will use the “ohms” function to test for continuity.
2. Test for continuity – Hold one probe of the multimeter to one wire and the other probe to another wire. If the multimeter beeps or shows a “0” reading, then the two wires are connected or have continuity.
3. Test for voltage – Set the multimeter to the “voltage” function and touch one probe to the live wire and the other probe to the neutral wire. You should get a reading of around 120 volts if the wiring is done correctly.
4. Test the switch – With the switch in the “off” position, touch one probe of the multimeter to the “hot” wire and the other probe to the switch terminal. The reading should be zero. With the switch in the “on” position, the reading should be around 120 volts.
Using a multimeter can help you identify and resolve any issues with the wiring of a light switch. It can also help you ensure that the wiring is done correctly and safely.
When working with electricity, it is important to take proper safety precautions. Here are some general safety tips to keep in mind when changing a light switch:
1. Turn off the power – Always turn off the circuit breaker before working with the wiring.
2. Use a voltage detector – Use a voltage detector to ensure that the wiring is not live before handling it.
3. Wear safety gear – Wear rubber gloves and safety glasses to protect yourself from electric shock.
4. Use the correct tools – Use insulated tools and tools rated for electrical work.
5. Seek professional help – If you are not comfortable working with electricity, or if you are unsure of what to do, seek professional help.
Changing a light switch may seem like a simple task, but it is important to ensure that it is done correctly and safely. Using a multimeter can help you verify that the wiring is done correctly and safely. Always remember to take proper safety precautions when working with electricity. If you are unsure of what to do, seek professional help.
