Choosing the right insulation material is critical for ensuring energy efficiency, cost savings, and safety in buildings. Various insulation materials are available, each with unique properties. Here's an in-depth look at some of the best insulation materials:
Fiberglass
Fiberglass insulation is made from fine strands of glass, effectively minimizing heat transfer. It is one of the most common insulation materials used in both residential and commercial buildings.
Key Features
R-value: R-2.9 to R-3.8 per inch
Advantages: Inexpensive, non-flammable, and does not absorb water.
Disadvantages: Health hazards during handling; requires safety equipment like masks and gloves.
"Insulation Material" by Rubber Dragon is licensed under CC BY-SA 2.0. To view a copy of this license, visit https://creativecommons.org/licenses/by-sa/2.0/.
Mineral Wool
Mineral wool includes several types such as glass wool, rock wool, and slag wool. These materials are derived from recycled glass, basalt, and steel mill slag, respectively.
Key Features
R-value: R-2.8 to R-3.5
Advantages: Non-combustible, can prevent fire spread up to 1,400°F, and available in various forms like batts or loose-fill.
Disadvantages: Less effective under extreme heat conditions.
"Thermal Insulation Material using Typha Australis & Cement" by Global Environment Facility (GEF) is licensed under CC BY-NC-ND 2.0. To view a copy of this license, visit https://creativecommons.org/licenses/by-nc-nd/2.0/.

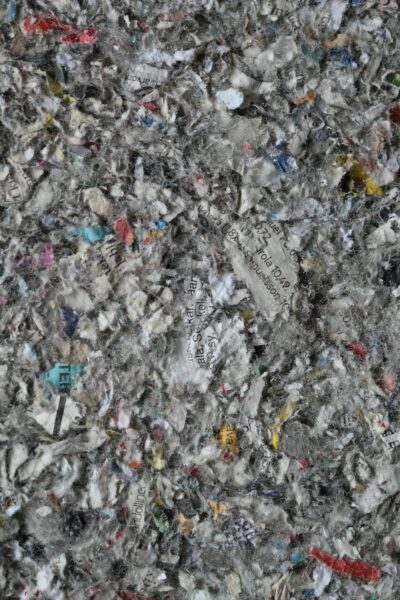

Cellulose
Cellulose insulation is made from recycled paper products like cardboard and newspaper, making it an eco-friendly option.
Key Features
R-value: R-3.1 to R-3.7
Advantages: Ecologically friendly, fire-resistant, and does not trap air, offering better ventilation.
Disadvantages: Can cause allergies due to newspaper dust; finding skilled installers can be challenging.
Polyurethane Foam
Polyurethane foam uses non-CFC gas as a blowing agent, making it lightweight and environmentally friendly.
Key Features
R-value: Approximately R-6.3 per inch for high-density foam, R-3.6 for low-density sprayed foam
Advantages: Excellent for sealing small cracks and air spaces, fire-resistant.
Disadvantages: Not as widely available as other insulation materials.
Polystyrene
Polystyrene insulation comes in expanded (EPS) and extruded (XEPS) forms, commonly known as Styrofoam.
Key Features
R-value: EPS has R-4, XEPS has R-5.5
Advantages: Waterproof, provides good sound and temperature insulation, available in rigid sheets or blocks.
Disadvantages: Flammable, requires fireproofing chemicals that pose health and environmental concerns.
Other Insulation Materials
Aerogel and Pyrogel XT
Specialized materials like Aerogel and Pyrogel XT are highly efficient and have unique properties.
Material
Properties
Applications
Aerogel
Extremely heat resistant (up to 2000°F), very thin
Used in NASA applications
Pyrogel XT
Highly efficient, thin insulation
Industrial applications
Considerations for Choosing Insulation
When choosing insulation, consider the following:
Higher R-values are better for areas with greater heat loss, like roofs and ceilings.
Medium R-values are effective for walls and crawl spaces.
Choose materials based on specific advantages, such as fire resistance or eco-friendliness.
